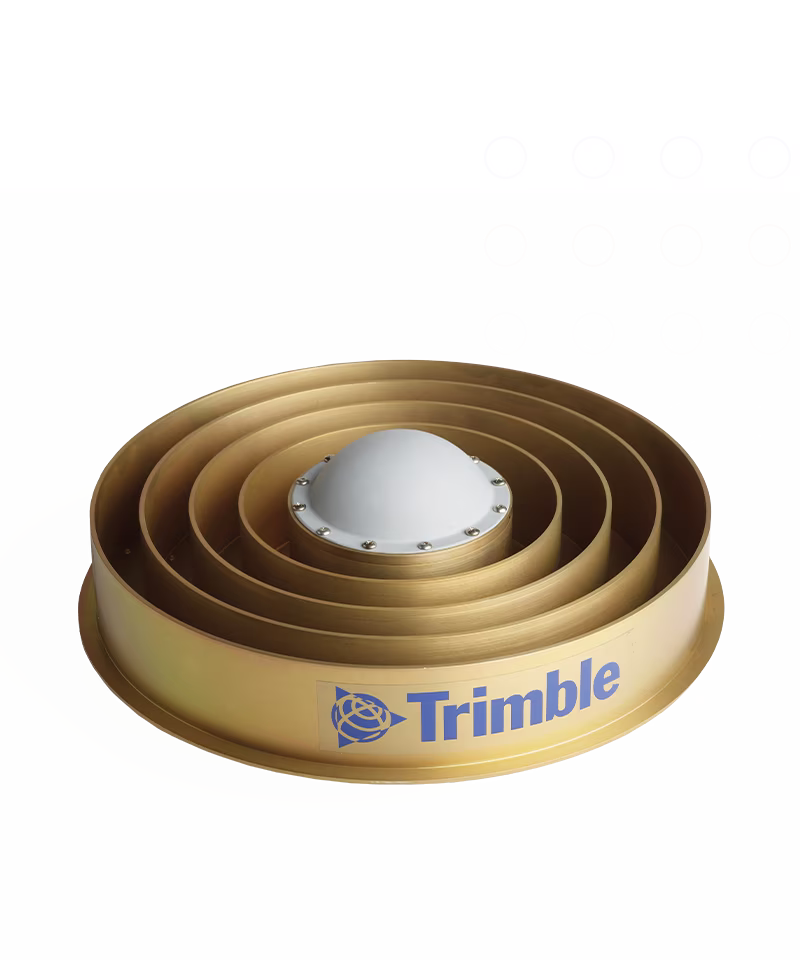

Trimble GNSS Ti-V2 Choke Ring

The Trimble® GNSS Ti-V2 Choke Ring geodetic antenna design is proven around the world to be effective in reducing the strength of most multipath signals. This advanced antenna has taken the choke ring design to the next level, with exclusive electronics, improved low noise amplification and GNSS tracking.

geo-product-choke-ring-pim-image
man with antenna and tripod

Trimble Choke Ring

Antenna options

Two antennas are available for geodetic application:

  • Trimble Zephyr 3 Geodetic antenna: the recommended choice for most sites with excellent multipath rejection in a cost-effective design.
  • Trimble GNSS Ti-V2 Choke Ring antenna: the recommended choice for very high multipath environments.

Each option is proven to deliver the performance network operators demand to ensure success in a variety of environments.

Product summary

Trimble GNSS Ti-V2 Choke Ring

The extended ground plane of a geodetic antenna is intended to stop all multipath signals that come from near or below the horizon.

Product line
Real-Time Networks

Product

Specifications

  • Improved signal reception in harsh signal environments

  • Comprehensive GNSS support, including GPS, GLONASS, Galileo, Beidou, QZSS and NavIC

  • Jet Propulsion Laboratory (JPL) scientific design

  • Extensive precision rotation-testing: ensures 2 mm or better phase-center eccentricity and < 1mm phase-center repeatability

  • Japanese LTE filtering

Product

Resources

Next steps

Our global network of Distribution Partners provides precision geospatial solutions, insight and support at a local level.
