Total stations

Trimble S9 Autolock

Take control of the way you work.

The high-performance Trimble® S9 Autolock® total station can easily tackle demanding jobs in monitoring, tunneling or other specialized applications. Autolock technology stays locked onto your prism, intelligently tracking it around the site, significantly reducing time to manually aim.

geo-product-s9-autolock-pim-image

Benefits and performance

Combining advanced technology and precision engineering, the Trimble S9 Autolock® total station delivers the measurements you need on specialized projects like monitoring and tunneling.

Measure up to every task

Equipped with the Trimble DR Plus EDM, measure with optimal speed, accuracy, and reliability on demanding jobs, giving you peace of mind with every measurement.

Trimble S9 Autolock on a bridge
Trimble S9 Autolock along highway

Technologies to expand your capabilities

Choose features to meet project demands, including angular accuracy, Trimble Long Range FineLock, Trimble Tracklight®, Trimble VISION and Trimble SureScan technology.

surveyor working on Trimble S9 Autolock Total Station

Angle accuracy

1"

EDM technology

DR PLUS

Accuracy

1.0 mm + 2 ppm Prism/2.0 mm + 2 ppm DR

Features and capabilities

Customize your total station
Get the right tools

Customize your total station

Choose VISION, FineLock, Long Range FineLock or Tracklight technologies. Select the technology features to fit project demands, ensuring you have the tools you need to succeed.
Precision when it matters most
Finelock technology

Precision when it matters most

FineLock technology detects targets without interference from surrounding prisms for high precision applications. Long range FineLock extends this functionality.
Document your work in the field
Trimble Vision

Document your work in the field

Use Trimble VISION to live-stream video on the controller and simply tap in Trimble Access field software to aim your total station. Capture images to document shots and or panoramas to document station setups.
Field-to-office workflows
Keep work moving

Field-to-office workflows

Customizable workflows in Access helps crews get the job done faster and more efficiently.

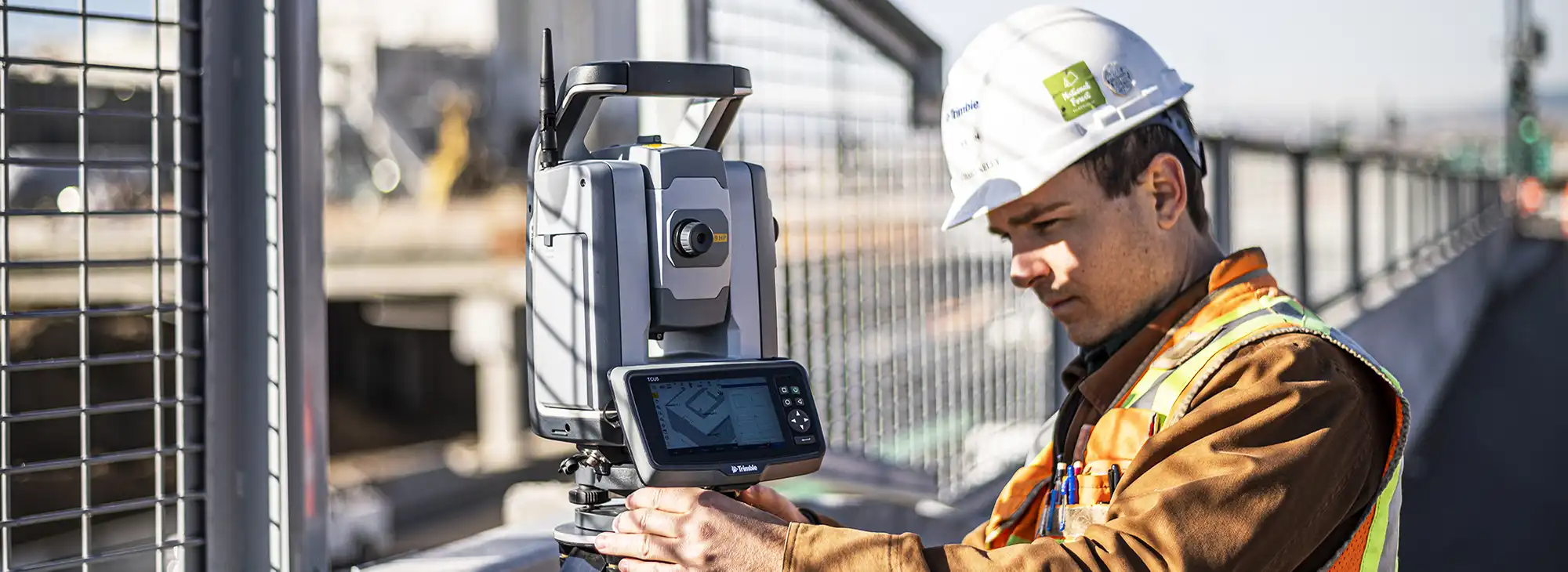

S9 Autolock on road

Industries and applications

The future of your work.

Trimble solutions facilitate high-quality, productive workflows and data exchange, driving value for a global, diverse user base.

Industries

Discover how Trimble can help you solve your industry's most complex challenges and uncover opportunities to work smarter.

Applications

Trimble transforms data into real-world intelligence using the most progressive, reliable and accurate precision technology to meet needs of varied applications.

Product summary

Trimble S9 Autolock

Advanced Autolock® total station for demanding tasks.

Product line
Trimble S9 Autolock

Product

Specifications

  • Angle accuracy

    1"

  • EDM technology

    DR PLUS

  • EDM accuracy

    1.0 mm + 2 ppm Prism/2.0 mm + 2 ppm DR

  • Maximum range

    5,500 m

  • Technology standard on all models

    Autolock, Magdrive, SurePoint, FineLock, Long Range FineLock, Active Tracking

Compare Autolock® Total Stations

Skip comparison of 4 items
Angular AccuracyEDM TechnologyEDM AccuracyMaximum RangeTechnology Standard on All ModelsModel-dependent features
Trimble S9 HP Autolock®Trimble S9 HP Autolock®0.5" or 1"DR HP0.8 mm + 1 ppm (Prism) / 3.0 mm + 2 ppm (DR)7,000 mAutolock, Magdrive, SurePoint, Active TrackingFineLock, Long Range FineLock, Tracklight, VISION
Trimble S9 Autolock®Trimble S9 Autolock®1"DR PLUS1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR)5,500 mAutolock, Magdrive, SurePoint, FineLock, Long Range FineLock, Active Tracking
Trimble S7 Autolock®Trimble S7 Autolock®1", 2", 3", or 5"DR PLUS1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR)5,500 mAutolock, Magdrive, SurePoint, Active TrackingFineLock, SureScan, VISION
Trimble S5 Autolock®Trimble S5 Autolock®1", 2", 3", or 5"DR PLUS1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR)5,500 mAutolock, Magdrive, SurePointTracklight, Active Tracking
