Total stations

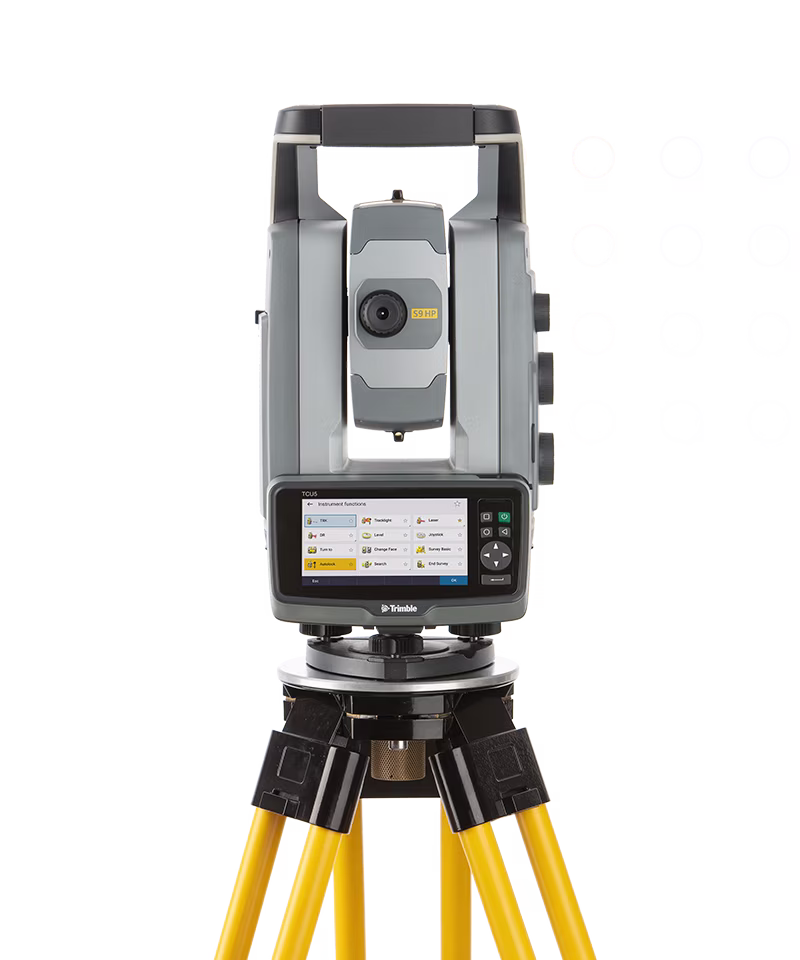

Trimble S9 HP Autolock
Precision you need to succeed.
The Trimble® S9 HP Autolock® total station can easily tackle demanding jobs in monitoring, tunneling or other specialized applications. Autolock technology stays locked onto your prism, intelligently tracking it around the site, and with HP, achieve the highest level of accuracy.

Benefits and performance

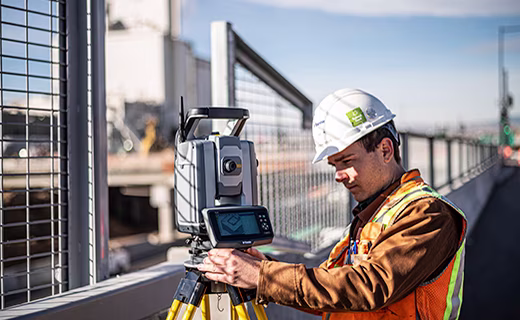

Combining advanced technology and precision engineering, the Trimble S9 HP Autolock® total station delivers the measurements you need on specialized projects like monitoring and tunneling.
Long range with accuracy
Equipped with the Trimble DR HP EDM, measure over long ranges with the high accuracy that's required for specialized projects like monitoring mines and dams.


Technologies to expand your capabilities
Choose technology features to meet project demands, including angular accuracy, Long Range Finelock, Tracklight, Trimble VISION™ and Tracklight.

Angular accuracy
0.5” or 1"
EDM technology
DR HP
Accuracy
0.8 mm + 1 ppm Prism/3.0 mm + 2 ppm DR
Features and capabilities

Get the right tools
Customize your total station
Choose VISION, FineLock, Long Range FineLock or Tracklight technologies. Select the technology features to fit project demands, ensuring you have the tools you need to succeed.

Finelock technology
Precision when it matters most
FineLock technology detects targets without interference from surrounding prisms for high precision applications. Long Range FineLock extends this functionality.

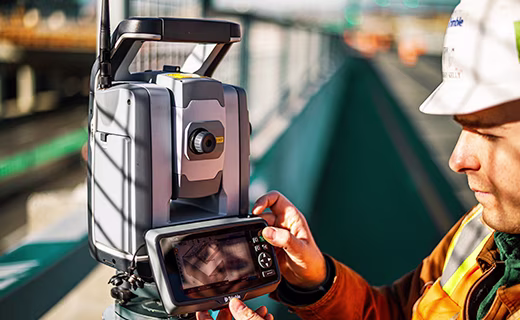

Trimble Vision
Document your work in the field
Use Trimble VISION to live-stream video on the controller and simply tap in Trimble Access™ field software to aim your total station. Capture images to document shots and or panoramas to document station setups.

Highly accurate
Measurements you can trust
Benefit from Trimble DR HP EDM for the highest accuracy and longest range prism measurements.

Industries and applications
The future of your work.
Trimble solutions facilitate high-quality, productive workflows and data exchange, driving value for a global, diverse user base.
Product summary
Trimble S9 HP Autolock
Advanced Autolock total station with top field technologies and unmatched precision.
Product line
Total Stations
Product
Specifications
Angular accuracy
0.5" or 1"
EDM technology
DR HP
EDM accuracy
0.8 mm + 1 ppm Prism/3.0 mm + 2 ppm DR
Maximum range
7,000 m
Technology standard on all models
Autolock, Magdrive, SurePoint, Active Tracking
Model-dependent features
FineLock, Long Range FineLock, Tracklight, VISION
Skip comparison of 4 items | ||||||
Angular Accuracy | EDM Technology | EDM Accuracy | Maximum Range | Technology Standard on All Models | Model-dependent features | |
---|---|---|---|---|---|---|
Trimble S9 HP Autolock®Trimble S9 HP Autolock® | 0.5" or 1" | DR HP | 0.8 mm + 1 ppm (Prism) / 3.0 mm + 2 ppm (DR) | 7,000 m | Autolock, Magdrive, SurePoint, Active Tracking | FineLock, Long Range FineLock, Tracklight, VISION |
Trimble S9 Autolock®Trimble S9 Autolock® | 1" | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint, FineLock, Long Range FineLock, Active Tracking | — |
Trimble S7 Autolock®Trimble S7 Autolock® | 1", 2", 3", or 5" | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint, Active Tracking | FineLock, SureScan, VISION |
Trimble S5 Autolock®Trimble S5 Autolock® | 1", 2", 3", or 5" | DR PLUS | 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) | 5,500 m | Autolock, Magdrive, SurePoint | Tracklight, Active Tracking |
