Settop M1

Robust automated total station control.

The Settop M1 monitoring controller remotely manages and controls Trimble total stations for real-time monitoring. Combined with Trimble® 4D Control (T4D) office software, users can reliably analyze, report and alarm on movement 24 hours a day.

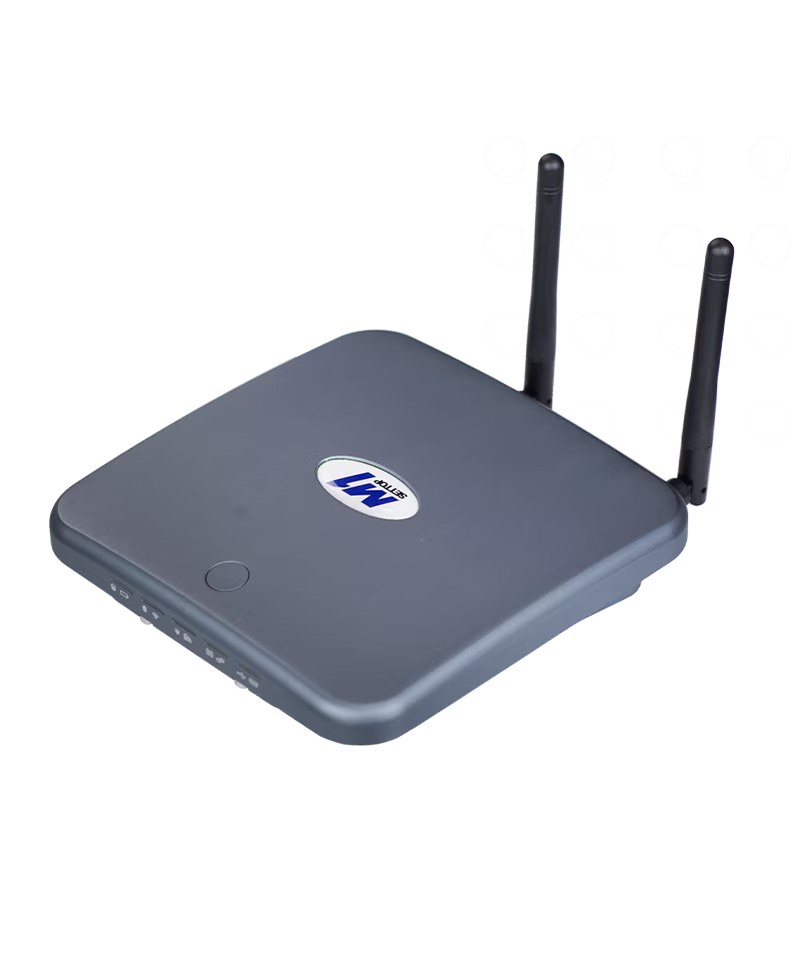

geo-product-settop-m1-pim-image

Features and capabilities

Collect and store data
Zero interruptions

Collect and store data

Data collection and storage is continuous; even when the internet connection is disrupted, measurement cycles will continue.

Less hardware required
Reduced complexity

Less hardware required

A field computer, remote switch, device server, router, WiFi router and 4G cellular modem in one device.

Flexible control and access
Remote access

Flexible control and access

Easily access total stations remotely to add and edit targets or check status at any time, from anywhere, without the need for a static IP or complex IT setup.

No communication gaps
Reliable data capture

No communication gaps

With a large internal memory, store data from the total station during any network outages. Data can be transmitted to T4D when the connection is restored.

Product summary

Settop M1

Remotely manage Trimble total stations from anywhere.

Product line
Monitoring

Product

Specifications

  • One communication device

    Computer, switch, router and modem

  • Uninterrupted data capture

    Recovery after communication outage

  • Automated total station rounds

    Capture data in real time

  • Communication options

    Use cellular, LAN or external comms

  • Intelligent power consumption

    Manages sensor power

  • Extensibility & integration

    SFTP and API available

Monitoring

Settop M1

Get in touch for recommendations for the Geospatial hardware, software, and accessories needed to get your job done.

Contact us
geo-product-settop-m1-pim-image
