Mobile mapping

Trimble MX60

Each project is a journey. Enjoy the ride.

The Trimble® MX60 mobile mapping system delivers powerful mobile scanning and imaging for asset management. Take control of your data capture and choose from core, pro or premium models to fit your needs and ensure the perfect solution for every project.

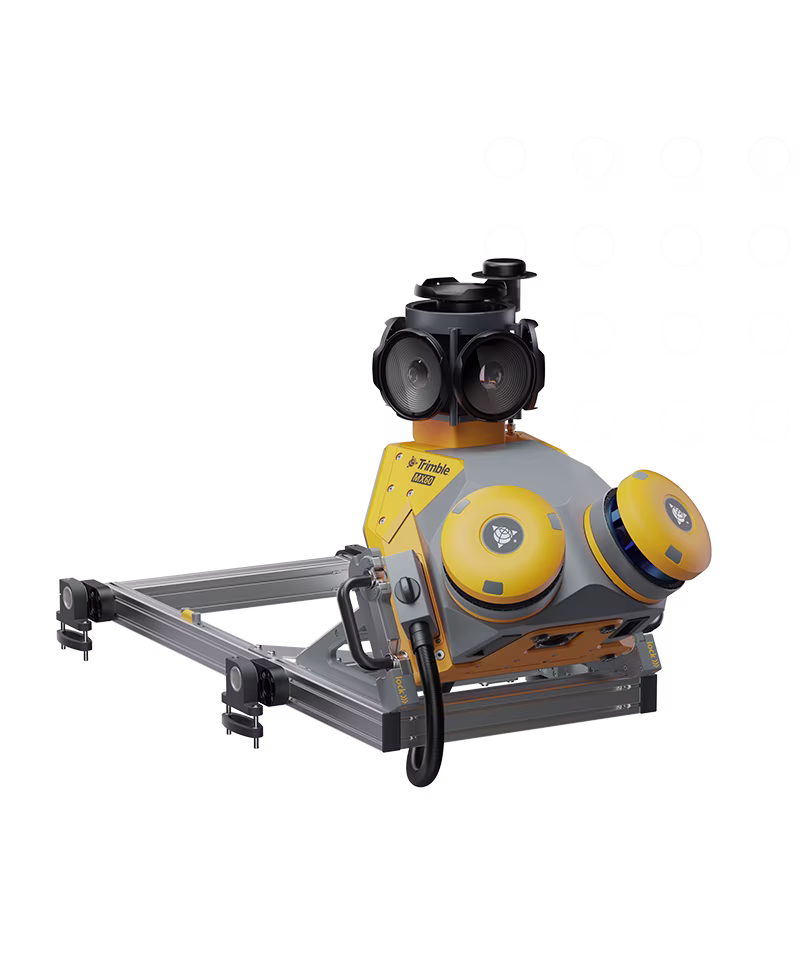

geo-product-mx60-pim-image-800x960

Benefits and performance

Whether you're just starting your mobile mapping journey, or a seasoned pro looking scale your business, drive your projects forward with the MX60.

Effortless end-to-end efficiency

The MX60 simplifies data capture and, with purpose-built office software, streamlines field-to-finish asset management and maintenance workflows.

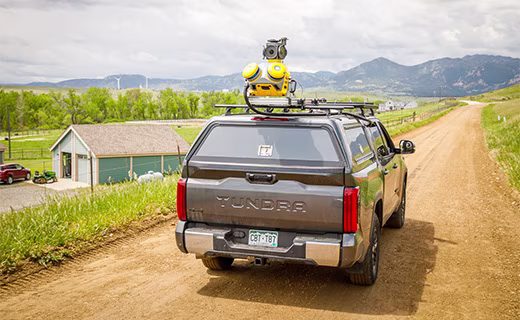

Trimble MX60 mobile mapping system mounted on a moving car's roof

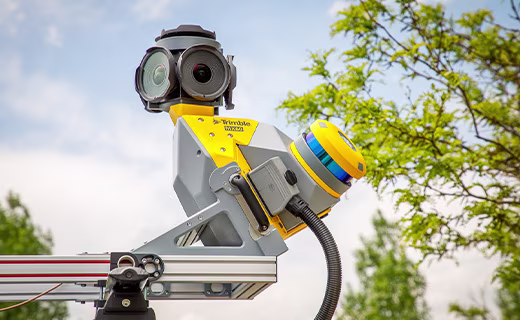

Trimble MX60 mobile mapping system

Driven to deliver

Powered by state-of-the-art LiDAR technology, best-in-class GNSS positioning and premium optics, the MX60 delivers comprehensive data for effortless asset management.

Trimble MX60 mobile mapping system mounted on a moving car's roof

Laser effective measurement rate

Up to 2000 kHz

Spherical camera

Up to 72 MP

Embedded Trimble GNSS-inertial system

Trimble InFusion+ with ProPoint engine

Features and capabilities

Quickly obtain asset data
Capture

Quickly obtain asset data

High-quality colorized point clouds and 360° immersive imagery with simple, smart device operation and single cable sensor connection.
Process vehicle trajectory
Process

Process vehicle trajectory

Trajectory data processing using tightly coupled GNSS and inertial data incorporated into Trimble Business Center (TBC) office software.

High-quality deliverables
Extract

High-quality deliverables

Create surveying, engineering and GIS deliverables using existing data schemas and connect to existing asset databases.

Publish, collaborate and store
Share

Publish, collaborate and store

Share point clouds and asset images via the cloud to all stakeholders. Extract asset information and store in the cloud, easily accessible for non-technical users.

Trimble MX60

Choose your model

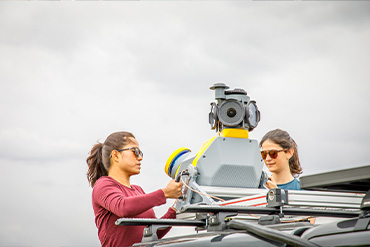

Trimble MX60 Core

Trimble MX60 Core

Kick-start your journey.

The perfect companion for asset management at scale.

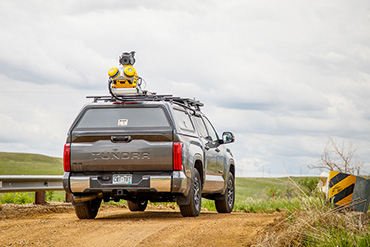

Trimble MX60 Pro

Trimble MX60 Pro

See the road ahead.

Elevated imaging, perfect for road analysis and crack detection.

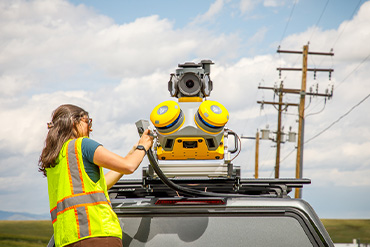

Trimble MX60 Premium

Trimble MX60 Premium

Capture it all, in a flash.

Comprehensive data capture with confidence.

Product summary

Trimble MX60

Mobile scanning and imaging for asset management.

Product line
Mobile Mapping

Product

Specifications

  • Weight

    Up to 28kg

  • IP rating

    Sensor unit IP64

  • Spherical camera

    Up to 72MP (6 X 12 MP)

  • Laser effective measurement rate

    Up to 2000 kHz

  • Scan speed

    Up to 400 scans/sec

  • Embedded Trimble GNSS-inertial system

    Trimble InFusion+ with ProPoint engine

Compare Mobile Mapping Systems

Skip comparison of 6 items
Weight (Sensor Unit) IP Rating (Sensor Unit)Operating Temperature StorageGNSS Azimuth Measurement System Distance Measuring IndicatorSpherical CameraPlanar CameraLaser ScannerLaser Effective Measurement RateLaser Field of ViewScan SpeedLaser PrecisionLaser Range AccuracyMaximum Range, Target Reflectivity > 80%Minimum RangeMaximum Number of Targets per PulseEmbedded Trimble GNSS-Inertial SystemField Software
Trimble MX90Trimble MX9037 kgIP640 °C to +40 °C2 x 4TB SSD removableYes, additionalYes, additional72 MP (6 x12 MP)2 X 12 MP side facing cameras, 1 X 12 MP backward/downward facing cameraDual Laser System600 kHz, 1 MHz, 2 MHz, 2.5 MHz, 3 MHz, 3.6 MHz360°500 scan/sec3 mm5 mm475 m (at effective measurement rate 300 kHz)1 m @ PRR ≥ 1 MHz, 1.2 m @ PRR < 1 MHzUp to 15 (at 300 kHz and 500 kHz Laser Pulse Repetition Rate PRR)X, Y: <0.01 Z: 0.01TMI, browser-based, no installation necessary
Trimble MX60 CoreTrimble MX60 Core24 kgIP64-10 °C to +50 °C2 x 4TB SSD removableYes, additionalYes, additional30 MP (6 x5 MP)1 X 12 MP backward/downward facing cameraDual Laser System1000kHz, 2000kHz selectable360°200, 400 scan/sec selectable2.5 mm2 mm150m at 1000kHz 120m at 2000kHz0.6 mX, Y: <0.01 Z: 0.01TMI, browser-based, no installation necessary
Trimble MX60 ProTrimble MX60 Pro26 kgIP64-10 °C to +50 °C2 x 4TB SSD removableYes, additionalYes, additional72 MP (6 x12 MP)1 X 12 MP backward/downward facing cameraDual Laser System1000kHz, 2000kHz selectable360°200, 400 scan/sec selectable2.5 mm2 mm150m at 1000kHz 120m at 2000kHz0.6 mX, Y: <0.01 Z: 0.01TMI, browser-based, no installation necessary
Trimble MX60 PremiumTrimble MX60 Premium28 kgIP64-10 °C to +50 °C2 x 4TB SSD removableYes, additionalYes, additional72 MP (6 x12 MP)1 X 12 MP backward/downward facing cameraDual Laser System1000kHz, 2000kHz selectable360°200, 400 scan/sec selectable2.5 mm2 mm150m at 1000kHz 120m at 2000kHz0.6 mX, Y: <0.01 Z: 0.01TMI, browser-based, no installation necessary
Trimble MX50Trimble MX5023 kg IP64-10 °C to +50 °C 2 x 2TB SSD / 4TB SSDYes, Included (for MX50 AP20)Yes, additional30 MP (6 x 5 MP)Dual Laser System320 kHz; 960 kHz360°240 scan/sec2.5 mm @ 30 m2 mm80 m0.6 m1AP20/AP60TMI, browser-based, no installation necessary
Trimble MX7Trimble MX711.3 kg IP65 0 °C to +35 °C 2 TB SSD Yes, additionalYes, additional30 MP (6 x 5 MP)AP15TMI, browser-based, no installation necessary
A woman installing a Trimble MX60 on the roof of a car

Industries and applications

The future of your work.

Trimble solutions facilitate high-quality, productive workflows and data exchange, driving value for a global, diverse user base.

Industries

Discover how Trimble can help you solve your industry's most complex challenges and uncover opportunities to work smarter.

Applications

Trimble transforms data into real-world intelligence using the most progressive, reliable and accurate precision technology to meet needs of varied applications.

Mobile mapping

Trimble MX60

Get in touch for recommendations for the Geospatial hardware, software, and accessories needed to get your job done.

Contact us
geo-product-mx60-pim-image-800x960

Works with...

Applanix POSPac MMS
Office software

Applanix POSPac MMS

GNSS-aided inertial postprocessing.
Trimble Business Center Mobile Mapping
Office software

Trimble Business Center Mobile Mapping

From raw mobile mapping data to actionable information.
Trimble MX
Office software

Trimble MX

Simplify your mobile mapping data organization.
