Trimble 4D Control Rail | Monitoring | Trimble Geospatial

Trimble^® 4D Control^™ (T4D) monitoring software provides a versatile solution to meet demanding rail industry standards for accuracy and efficiency. Eliminate manual calculations and easily automate your track geometry monitoring using geodetic or geotechnical data.

Trimble 4D Control

geo-product-4d-control-rail-pim-image

Benefits and performance

Monitor and provide crucial information on track geometry and the stability of rail track in real time for informed decision-making on rail site movements.

Powerful solution for multiple workflows

Accurately detect and monitor changes in track geometry using either an automated or semi-automated monitoring approach with geodetic or geotechnical data.

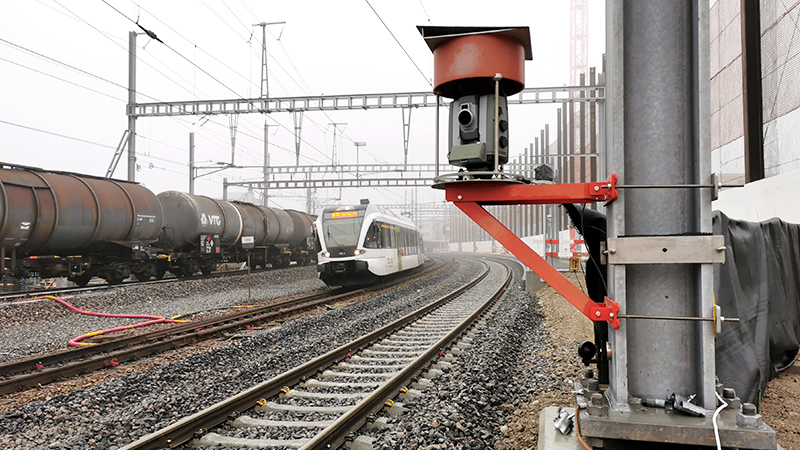

monitoring total station mounted beside rail track

scenic view with a monitoring total station

Advanced capabilities

Features align seamlessly with rail authority standards and project specifications for a unique and intuitive solution.

As-built data integration

Absolute geometry

Use as-built data collected with the Trimble Access^™ Track Gauge Survey app or Trimble GEDO CE track measurement trolley for absolute results.

Real-time alarms

Around the clock

Stay informed on the behavior of your rail track geometry and receive automatic alerts on rail-specific parameters at any time of sudden and critical changes.

Rail-specific visualization

Flexible

Benefit from rail-specific visualization with the flexibility to view your preferred reference measurement: left or right rail, track centerline, or a combination.

Geodetic or geotechnical

Comprehensive

Leverage both geodetic and geotechnical solutions to effectively meet the most demanding rail monitoring project requirements.

Product summary

Trimble 4D Control Rail

Monitor rail geometry with confidence.

Product line

Office Software

Product

Features

Choice of workflows
Automated and semi-automated
Monitor all geometry parameters
Cant, twist, displacements, versines
Enhanced flexibility
AMTS with or without as-built
Rail-specific visualization
Across chainages or time
Automatic alarming
Real-time, 24/7
Comprehensive deliverables
Parameter values or detailed metrics

Product

Resources

Office software

Get in touch for recommendations for the Trimble Geospatial hardware, software, and accessories needed to get your job done.

geo-product-4d-control-rail-pim-image

Works with...

Trimble 4D Control

Office software

Automated movement detection with confidence.

Track Gauge Survey app & bar

An entry-level solution to capture measurements and other data on existing railway tracks.

Trimble S9

Total stations

High-performance total station for the most demanding jobs.

Trimble S9 HP

Total stations

Top field technologies with the highest level of accuracy.

Trimble S9 HP Autolock®

Total stations

Top field technologies with the highest level of accuracy.

Trimble S7

Total stations

Measure and more with a single operator.

Trimble S7 Autolock®

Total stations

Works efficiently and dependably while intelligently maintaining the highest possible accuracy.

Trimble R750 MON Model 2

GNSS systems

Automated movement detection for demanding projects.

Trimble Access Monitoring

Field software

Streamlined monitoring data capture.

Settop M1

Monitoring

Remotely manage Trimble total stations from anywhere.

4G Rugged Gateway

Monitoring

Communicate with wireless geotechnical sensors and data loggers.

Wireless geotechnical sensors

Monitoring

Tilt and distance measurements for movement detection.

Wireless data loggers

Monitoring

Turn any geotechnical sensor into a wireless device.
